GRVNavigationBackButtonItemProtocol

2025-06-05 08:55

IAPMiniProgram SDK provides the ability to customize the style of the back button in the title bar of the mini program, so that the Super App can use its own text or image to customize and render the back button of the mini programs accordingly. Follow this topic to realize this customization ability by implementing the specific interface of IAPMiniProgram SDK.

Procedures

Step 1. Implement the GRVNavigationBackButtonItemProtocol protocol

Implement the GRVNavigationBackButtonItemProtocol protocol and write code in the required methods according to your business logic.

Code sample as follows:

Sample: Image button

copy
class BackButtonCustomization: NSObject, GRVNavigationBackButtonItemProtocol {
    var itemContentType: GRVNavigationItemContentType = .image
    var image: UIImage? = UIImage(named: "xxx")?.withRenderingMode(.alwaysOriginal)
    var text: String? = nil
}

Sample: Text button

copy
class BackButtonCustomization: NSObject, GRVNavigationBackButtonItemProtocol {
    var itemContentType: GRVNavigationItemContentType = .text
    var image: UIImage? = nil
    var text: String? = "xxx"
}

Step 2. Configure the GRVNavigationBackButtonItemProtocol protocol

Refer to the following sample code. Configure the GRVExtensionDelegate interface to register GRVNavigationBackButtonItemProtocol after initializing the SDK.

copy
let extensionDelegate = GRVExtensionDelegate()
extensionDelegate.uiProvider.pageBackButtonItemSetting = BackButtonCustomization()

Then you can view the following screenshots for user experience.

Protocols

GRVNavigationBackButtonItemProtocol protocol

The definition of the GRVNavigationBackButtonItemProtocol protocol is shown in the following codes:

copy
typedef NS_ENUM(NSUInteger, GRVNavigationItemContentType) {
    GRVNavigationItemContentText,
    GRVNavigationItemContentImage
};

@protocol GRVNavigationItemProtocol <NSObject>

@required
@property (nonatomic, assign) GRVNavigationItemContentType itemContentType;
@property (nonatomic, copy) NSString * _Nullable text;
@property (nonatomic, strong) UIImage * _Nullable image;

@end

@protocol GRVNavigationBackButtonItemProtocol <GRVNavigationItemProtocol>

@end

Parameter	Data type	Required	Description
itemContentType	GRVNavigationItemContentType	Yes	Indicates the style of the back button that can be customized. Valid values: `GRVNavigationItemContentText`: the customized text is displayed for the back button. `GRVNavigationItemContentImage`: the customized image is displayed for the back button.
text	String	No	Indicates the customized text for the back button. Note: When itemContentType = `GRVNavigationItemContentText`, this parameter takes effect.
image	UIImage	No	Indicates the customized image for the back button. Note: When itemContentType = `GRVNavigationItemContentImage`, this parameter takes effect.

Appendices

User experience

Configuration	Screenshot

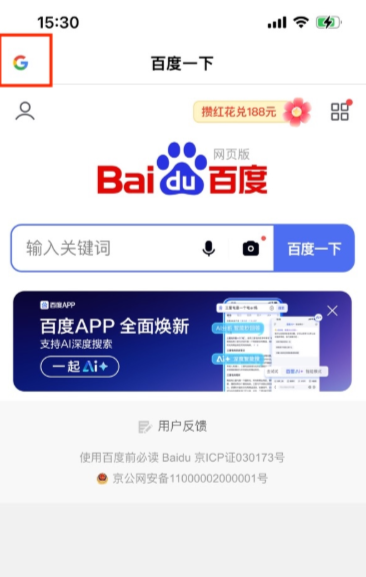

When the back button style is customized image.

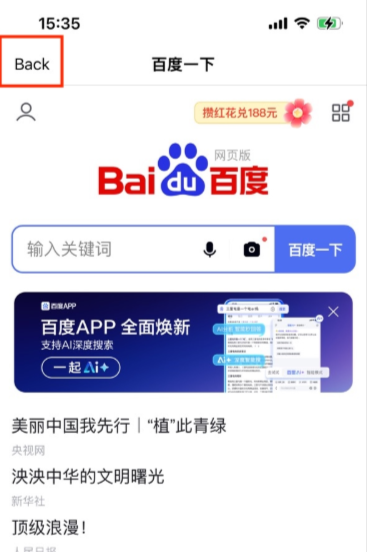

When the back button style is customized text.
