GRVPromptDelegate

IAPMiniProgram SDK provides the ability to customize the prompt dialog, so that the Super App can customize the style of prompt dialog with the same style as mini program UI. Follow this topic to realize this ability by implementing the specific interface of IAPMiniProgram SDK.

Procedures

To customize prompt dialog, follow these steps:

Step 1. Implement the GRVPromptDelegate delegate

Implement the GRVPromptDelegate delegate and write code in the required methods according to your business logic.

Code sample as follows:

copy
class DemoPromptDelegateImpl: NSObject, GRVPromptDelegate {
    func showPrompt(
        with param: GRVPromptParam,
        currentViewController: UIViewController,
        positiveAction: GRVAlertActionBlock,
        negativeAction: GRVAlertActionBlock,
        cancelAction: GRVAlertActionBlock
    ) {
        // customize prompt
    }
}

Step 2. Configure the GRVPromptDelegate delegate

Refer to the following sample code. Configure the GRVExtensionDelegate interface to register the GRVPromptDelegate delegate after initializing the SDK.

Then you can view the following screenshots for user experience.

copy
let extensionDelegate = GRVExtensionDelegate()
extensionDelegate.uiProvider.promptDelegate = DemoPromptDelegateImpl()

Delegates

GRVPromptDelegate delegate

The definition of this delegate is shown in the following codes:

copy
@protocol GRVPromptDelegate <NSObject>

@required

/** Show prompt view

 Prompt  view contains an input view or other custom view in it

 @param param GRVPromptParam
 @param currentViewController current view controller for presenting the prompt view controller.
 @param positiveAction when user click the ok button, you should call the positiveAction for calling back.
 @param negativeAction when user click the cancel button, you should call the negativeAction for calling back.
 @param cancelAction when user click the prompt background view, you should cancel showing the prompt view and call the cancelAction for calling back.
 */
- (void)showPromptWithParam:(GRVPromptParam *)param
      currentViewController:(UIViewController*)currentViewController
             positiveAction:(GRVAlertActionBlock)positiveAction
             negativeAction:(GRVAlertActionBlock)negativeAction
               cancelAction:(GRVAlertActionBlock)cancelAction;
@end

Methods

Based on the definition above, this interface provides the following method:

Method

Description

showPromptWithParam:currentViewController:positiveAction:negativeAction:cancelAction:

Return a customized prompt dialog instance.

showPromptWithParam:currentViewController:positiveAction:negativeAction:cancelAction: method

Method definition as follows:

Parameter

Data type

Required

Description

param

GRVPromptParam class

Yes

The prompt information.

currentViewController

UIViewController

Yes

The current view controller.

positiveAction

Function

Yes

The callback function when clicking the positive button.

negativeAction

Function

Yes

The callback function when clicking the negative button.

cancelAction

Function

Yes

The callback function when clicking the background to trigger the "exit" prompt.

GRVPromptParam class
copy
@interface GRVPromptParam : GRVAlertParam

/**
 placeHolder for prompt
 */
@property(nonatomic, copy)NSString *placeHolder;

@end

This class inherits the parent GRVAlertParam class, and has its extended parameters as follows:

Parameter

Data type

Required

Description

placeHolder

NSString

No

The prompt text for the entry box.

GRVAlertParam class
copy
typedef void (^GRVAlertActionBlock)(NSString *_Nullable);

NS_ASSUME_NONNULL_BEGIN

@interface GRVAlertParam : NSObject

/**
 title
 */
@property(nonatomic, copy)NSString *title;

/**
 message
 */
@property(nonatomic, copy)NSString *message;

/**
 message align, support left, center and right
 */
@property(nonatomic, copy)NSString *align;

/**
 title for 'ok' button
 */
@property(nonatomic, copy)NSString *positiveString;

/**
 title for 'no' button
 */
@property(nonatomic, copy)NSString *negativeString;

/**
 positive text color, support hex  string like "#ffffff"
 */
@property(nonatomic, copy)NSString *positiveTextColor;

/**
 negative text color, support hex  string like "#ffffff"
 */
@property(nonatomic, copy)NSString *negativeTextColor;

/**
 cancelable decide whether the alert can be canceled.default value is true for alert and false for prompt.
 */
@property(nonatomic, assign)BOOL cancelable;

@end

Field

Data type

Required

Description

title

String

No

The title of the prompt dialog to be displayed.

message

String

Yes

The message of the prompt dialog to be displayed.

align

String

No

The alignment of the message of the prompt dialog to be displayed.

Valid values:

  • Gravity.LEFT: indicates the message alignment is left.
  • Gravity.RIGHT: indicates the message alignment is right
  • Gravity.CENTER: indicates the message alignment is center. If this parameter is not set, this is the default alignment.

positiveString

String

No

The postive button text of the dialog to be displayed.

negativeString

String

No

The negative button text of the dialog to be displayed.

positiveTextColor

String

No

The postive button color of the Dialog to be displayed.

Supported color formats:

  • #RRGGBB
  • #AARRGGBB

negativeTextColor

String

No

The negative button color of the Dialog to be displayed.

Supported color formats:

  • #RRGGBB
  • #AARRGGBB

cancelable

Boolean

No

Indicates whether this prompt dialog is cancelable.

Appendices

User experience

Prompt alignment

Screenshot

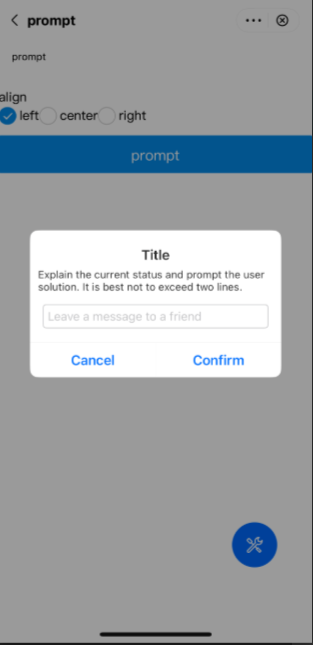

Align left

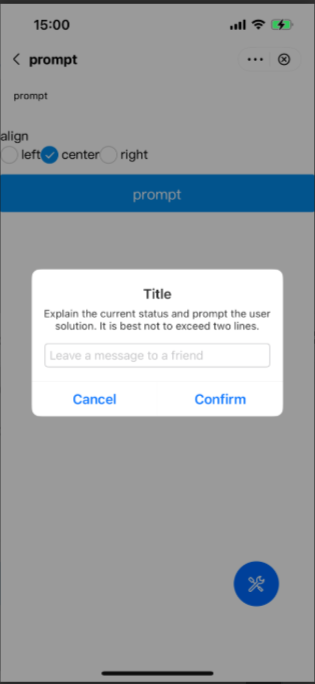

Align center

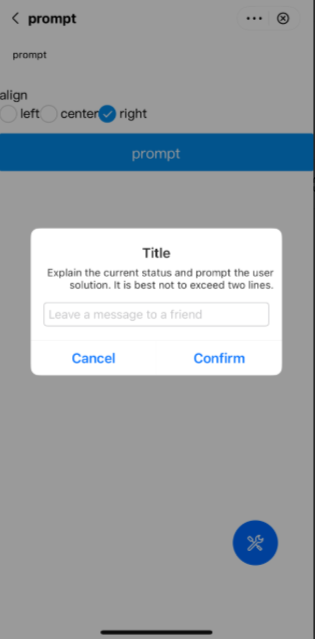

Align right
