Customize multi-level selections

The super app can customize the cascading multi-level selector within mini programs to ensure a consistent user interface. The multi-level/cascade selector appears when mini programs call the my.multiLevelSelect JSAPI to enable users to select multiple levels of associated data, such as province, city and district.

Default user interface

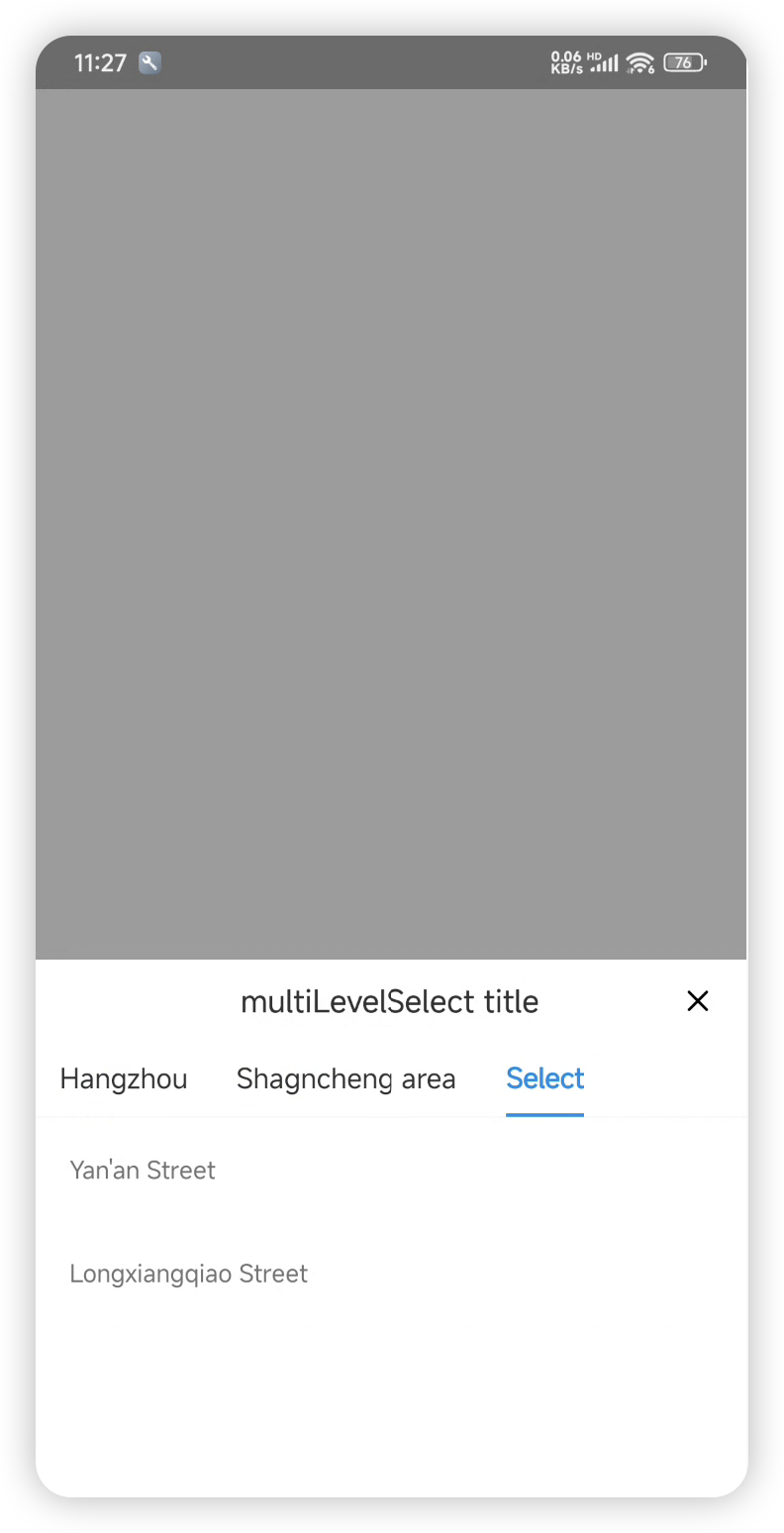

The following figure shows the UI examples of the default multi-level selector:

Before you begin

Ensure that the integrated Android IAPMiniProgram SDK is version 2.65.1 or later. For more information, see SDK release notes.

Procedure

To customize the cascading multi-level selector, take the following steps:

Step 1: Implement the GriverMultilevelPickerExtension interface

Create a class that implements the GriverMultilevelPickerExtension interface. Within the class, override the showMultilevelPickerfunction. Refer to the following code for a sample implementation.

For more information about the interface and its methods, refer to the GriverMultilevelPickerExtension interface.

class CustomMultiExtensionImpl : GriverMultilevelPickerExtension {

    override fun (
        activityWeakReference: WeakReference<Activity>,
        multilevelPickerParam: GriverMultilevelPickerParam,
        resultCallback: GriverMultilevelPickerResultCallback
    ) {
        //Customize the UI MultiLevelSelect picker
    }

}

Step 2: Register the CustomMultiExtensionImpl class

After initialize the SDK, call the registerExtension API to register the CustomMultiExtensionImpl class.

IAPConnect.init(application, initConfig, object : InitCallback {
    override fun onSuccess() {
        //···
        Griver.registerExtension(GriverExtensionManifest(
            GriverMultilevelPickerExtension::class.java,
            CustomMultiExtensionImpl()
        ))
    }
})

Interfaces

GriverMultilevelPickerExtension interface

The GriverMultilevelPickerExtension interface defines functions for the super app to customize a multi-level picker, which the SDK then calls to render the customized cascading selection UI. Refer to the following code for the interface definition:

interface GriverMultilevelPickerExtension : GriverExtension {

    /**
     * Show the MultilevelPicker
     *
     * @param activityWeakReference Activity，used to customize the context for UI
     * @param multilevelPickerParam  Parameters for MultilevelPicker, including the picker title and the data to display
     * @param resultCallback Call resultCallback.onSuccess() or onCancel() based on user operation
     */
    fun showMultilevelPicker(
        activityWeakReference: WeakReference<Activity>,
        multilevelPickerParam: GriverMultilevelPickerParam,
        resultCallback: GriverMultilevelPickerResultCallback
    )
}

The following table lists the details of the defined functions:

showMultilevelPicker function

This function has the following input parameters whose values are passed by the SDK.

GriverMultilevelPickerParam

data class GriverMultilevelPickerParam(
    var title: String?,
    var list: List<GrvierMultilevelPickerSubItem>
        ) : SerializableGriverMultilevelPickerParam

GriverMultilevelPickerResultCallback

interface GriverMultilevelPickerResultCallback {
    fun onSuccess(selectedIndex: IntArray)

    fun onCancel()
}

onSuccess
